1. Physical and chemical properties
| Grade |
Density (g/cm3) |
Hardness (HRA) |
TRS (N/mm2) |
Application |
| TF12 |
14.05 |
91.8 |
3200 |
It is recommended for manufacturing of all types of drills, end mills, reaming, carving tools, suitable for dealing with stainless steel, nichrome, titanium alloy, heat-treated steel, cast iron, aluminum alloy, fine aluminum, iron, plastic, graphite; |
| YG15 |
14 |
86.5 |
2500 |
Excellent impact and shock resistance, suitable for cemented carbide die blanks mold core, etc; |
| YG6X |
14.9 |
91.5 |
1750 |
Its wear Resistance is higher than YG6, used for processing hard wood, original wood, aluminum section bars, brass rod and cast iron; |
| YG10X |
14.5 |
91 |
2400 |
It is recommended for manufacturing of all types of drills, end mills, burrs, etc, suitable for the hole machining of steels,gray cast iron, austenitic stainless steel and heat-resistance alloy. |
2. Product detail
| Product name |

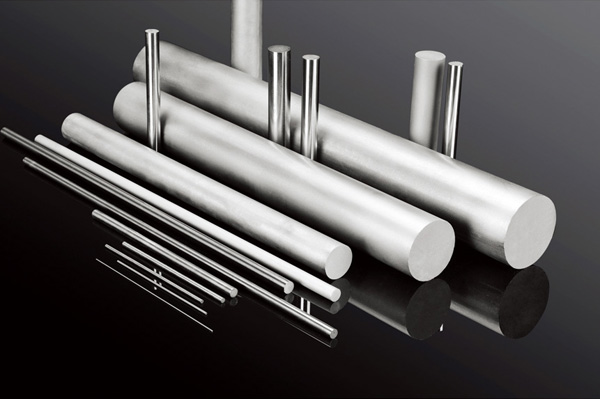

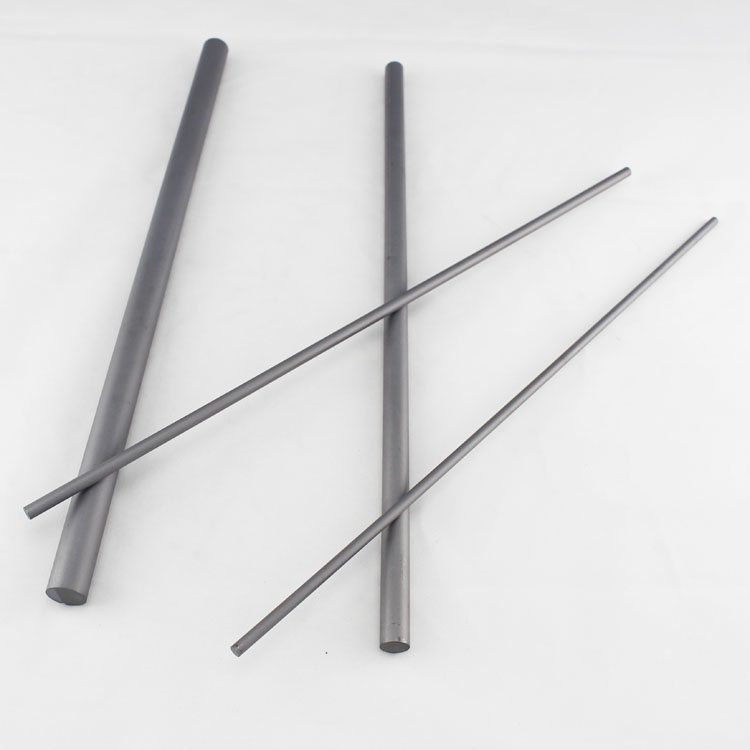

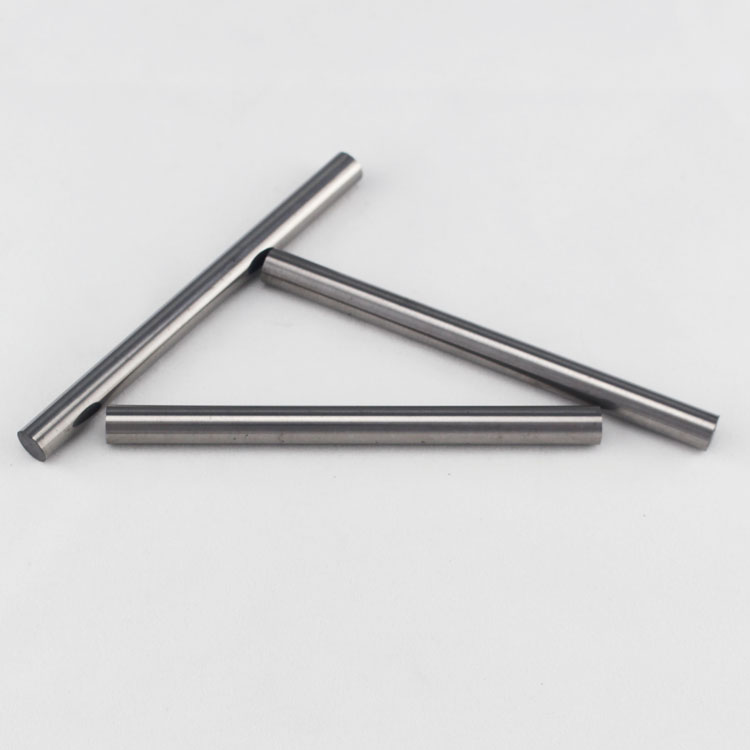

tungsten carbide rods |
| Material |
tungsten carbide |
| Grade |
TF12, YG15, YG6X, YG10X |
| Size/ Type |
OD: 2 to 50mm, length: 50-330mm (accept customized size) |
| Surface |
Blank, simple ground, polished |
| Packing |
20kgs/ carton |
| MOQ |
5kgs (sample is also available.) |
| Delivery time |
For the normal type which we have mould, it takes 7-30 days as per your quantity after receiving the advance payment. |

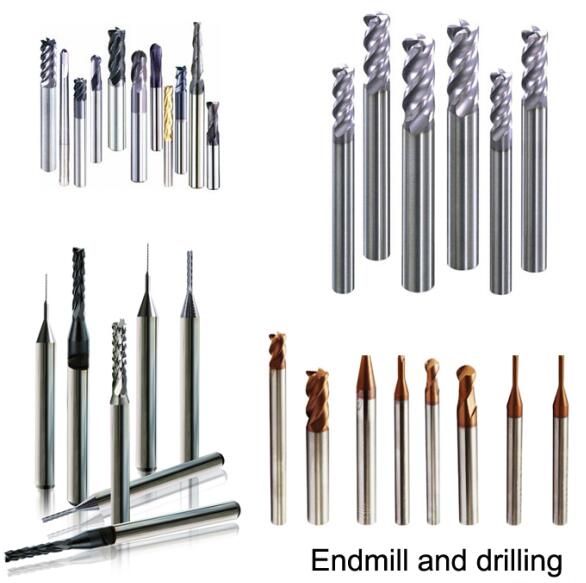

3. Application

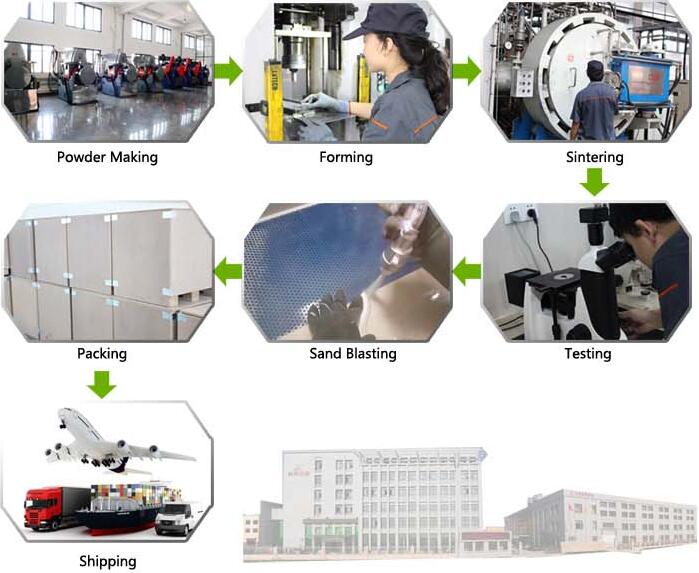

4. Production process
|
