1. Physical and chemical properties
| Grade |
Density (g/cm3) |
Hardness (HRA) |
TRS (N/mm2) |
Application |
| YG6 |
14.9 |
1780 |
1780 |
For drawing the steel ,nonferrous metal and alloy rods and bar which OD below 20mm under biggish stress Also suitable for making tungsten carbide nozzles. |
| YG6XD |
14.9 |
2800 |
2800 |
For drawing the steel,wear resisitance nonferrous metal and alloy road and bar which OD below 40mm under biggish stress. |
| YG6X |
14.9 |
1750 |
1750 |
For drawing the steel,nonferrous metal and alloy rods and bar which OD below 6mm under medium stress. |
| YG8 |
14.7 |
1900 |
1900 |
For drawing the steel ,nonferrous metal and alloy rods and bar which OD below 50mm under biggish stress. |
| YG12C |
14.3 |
2500 |
2500 |
For drawing the steel,nonferrous metal and alloy rods and bar under very high stress. |

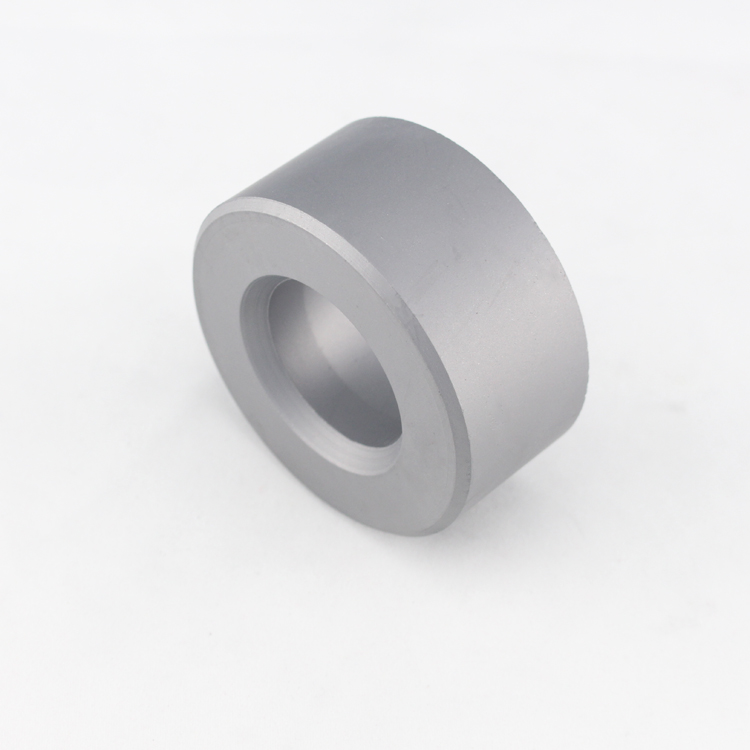

2. Product detail
| Product name |
tungsten carbide drawing dies |
Material | tungsten carbide |
| Grade |
YG6, YG6XD, YG6X, YG8, YG12C |
| Size/ Type |
as per customer's requirement |
| Surface |
Blank, finished |
| Packing |
20kgs/ carton |
| MOQ |
5kgs (sample is also available.) |
| Delivery time |
For the normal type which we have mould, it takes 7-30 days as per your quantity after receiving the advance payment
|

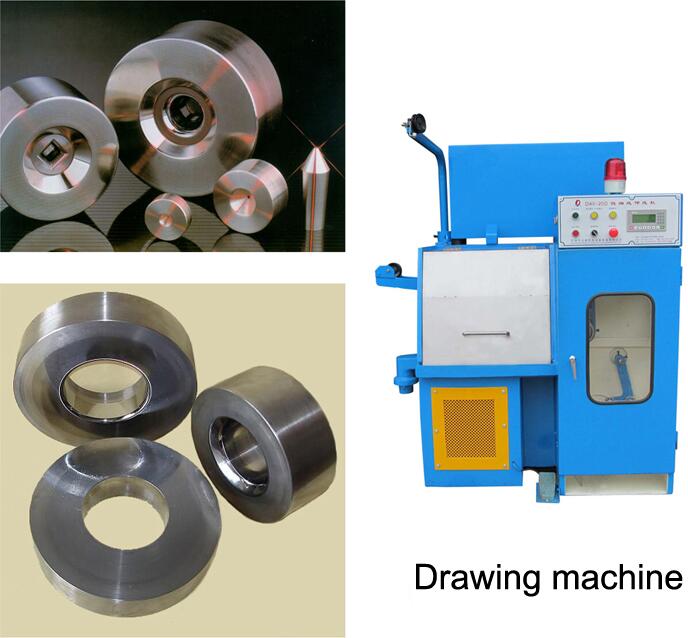

3. Application

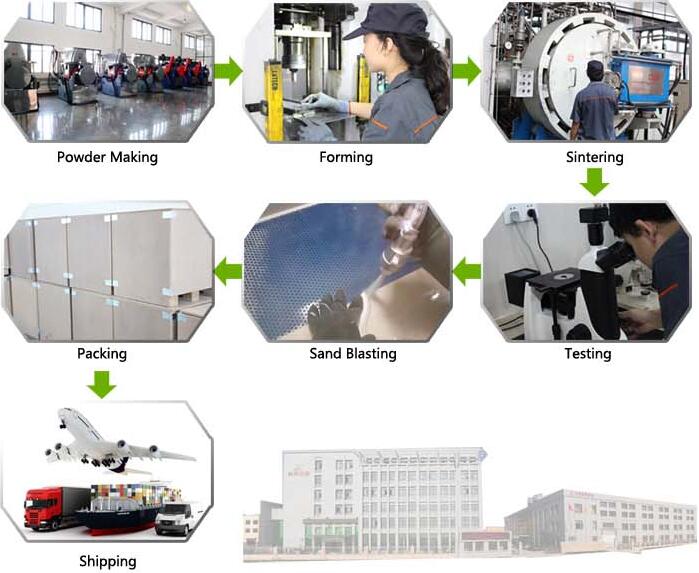

4. Production process
|
