1. Physical and chemical properties
| Grade |
Density (g/cm3) |
Hardness (HRA) |
TRS (N/mm2) |
Application |
| YG11C |
14.35 |
87.6 |
2200 |
Forming of stamping dies for metal powers and nonmetal powders. |
| YG15 |
14 |
86.5 |
2500 |
For fabricating drawing dies of steel tubes and rods under high compressibility retio;punching,stamping,forging tools under large stress. |
| YG15C |
14 |
85 |
2700 |
Excellent impact and shock resistance,suitable for Cemented carbide die blanks,Mold core,ect. |
| YG18C |
13.7 |
84.5 |
2700 |
Impact resistance forging dies,hot press forging dies and rollers. |
| YG20 |
13.5 |
84 |
2750 |
For various dies made by cold forging,cold stamping and hot forging. |
| YG20C |
13.4 |
82 |
2800 |
Dies for wear resistance or impact resistance application. |

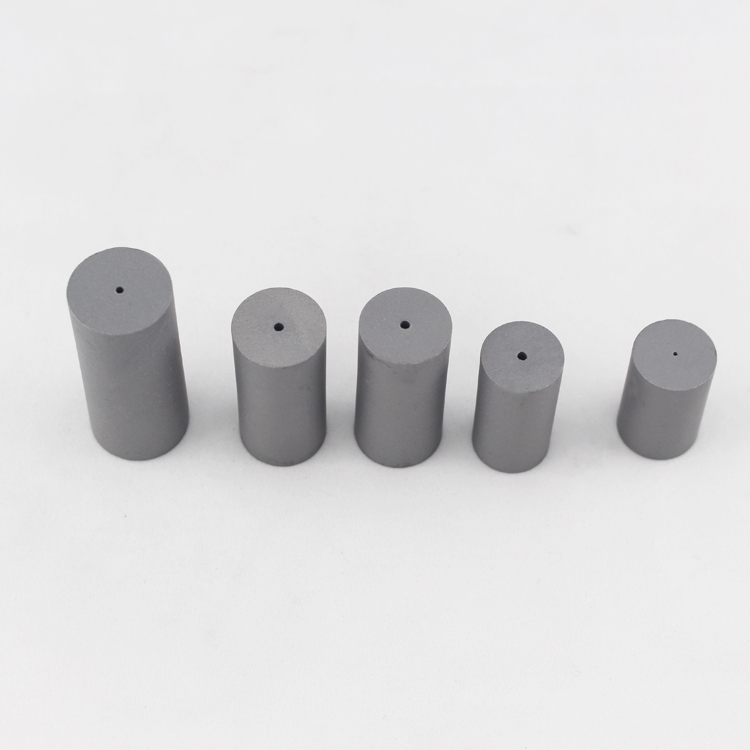

2. Product detail
| Product name |
tungsten carbide cold heading dies |
| Material |
tungsten carbide |
| Grade |
YG11C, YG15,YG15C,YG18C,YG20,YG20C |
| Size/ Type |
as per customer's requirement |
| Characteristic |
good shock resistance |
| Packing |
20kgs/ carton |
| MOQ |
5kgs (sample is also available.) |
| Delivery time |
For the normal type which we have mould, it takes 7-30 days as per your quantity after receiving the advance payment. |

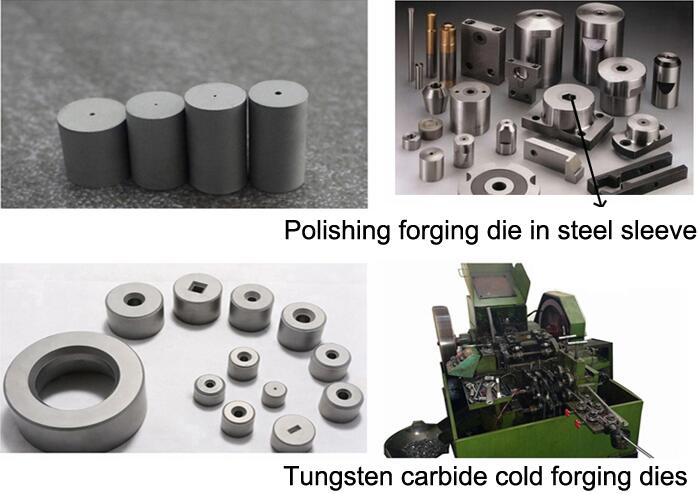

3. Application

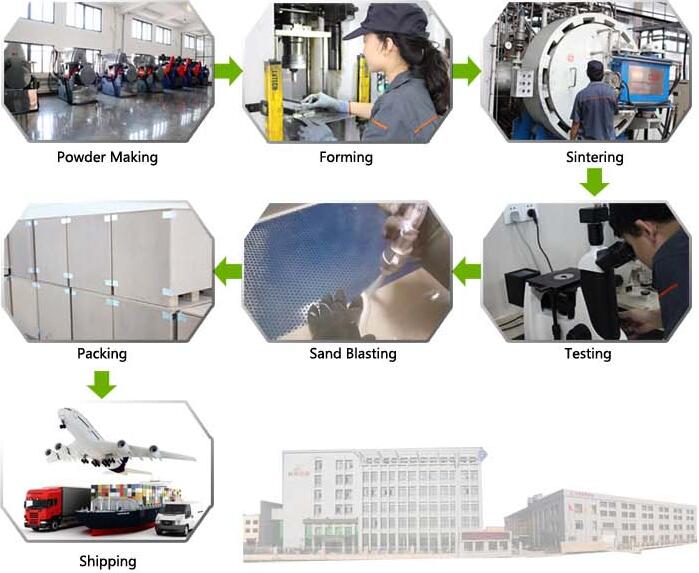

4. Production process
|
