1. Physical and chemical properties
| Grade |
Density (g/cm3) |
Hardness (HRA) |
TRS (N/mm2) |
Application |
| SC206 |
14.9 |
90.5 |
3100 |
Good wear resistance,excellent anti-impact and anti-knocking properties.For drilling hard and super hard rock formation at high pressure. |
| SC206H |
14.9 |
90.5 |
2900 |
Good wear resistance,excellent anti-impact and anti-knocking properties.For drilling hard and super hard rock formation at high pressure. |
| YR10D |
14.5 |
87.8 |
2700 |
Coarse grain-size carbide,suitable for road,coal mining and construction drilling bit. |

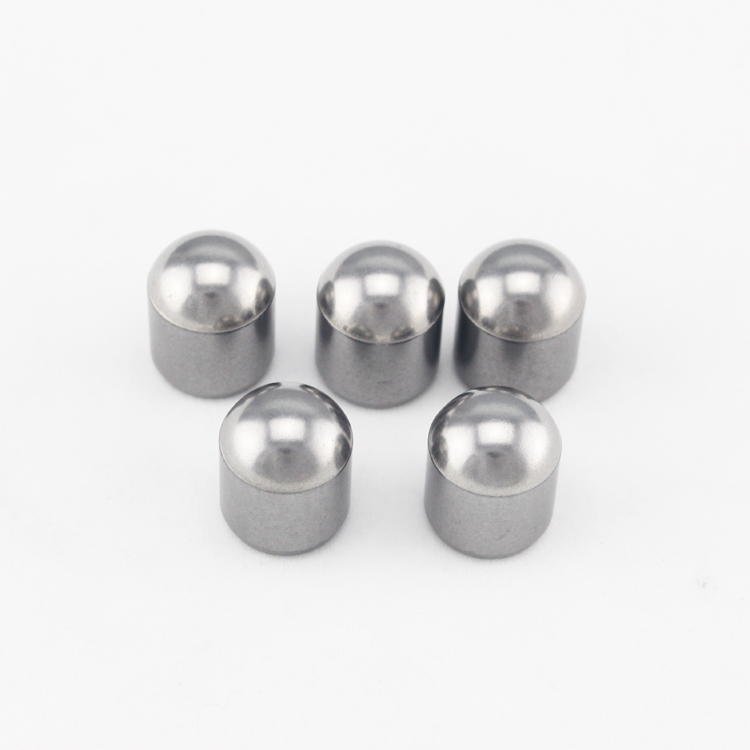

2. Product detail
| Product name |
tungsten carbide buttons |
| Material |
tungsten carbide |
| Grade |
SC206, SC206H, YR10D |
| Size/ Type |
16x21, 16x26, 16x28 etc ( accept customized size) |
| Characteristic |
Good wear resistance, high hardness, high TRS |
| Packing |
20kgs/ carton |
| MOQ |
10kgs (sample is also available.) |
| Delivery time |
For the normal type which we have mould, it takes 7-30 days as per your quantity after receiving the advance payment. |

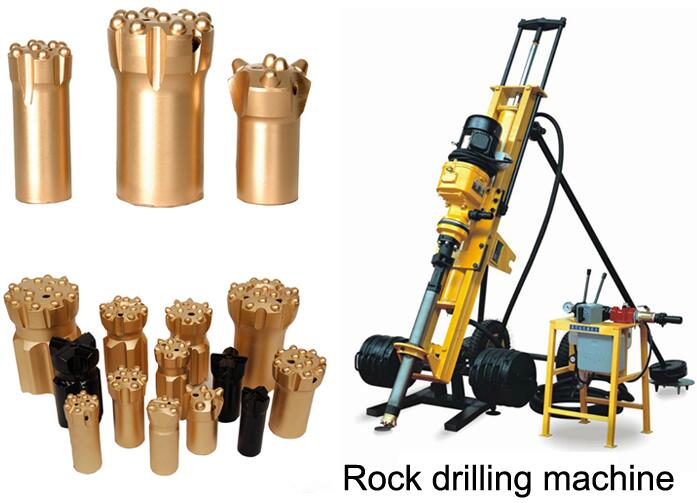

3. Application

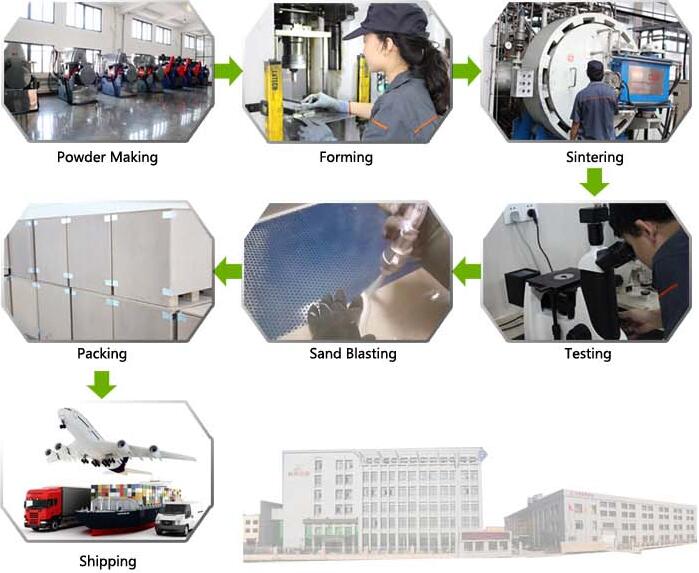

4. Production process
|
